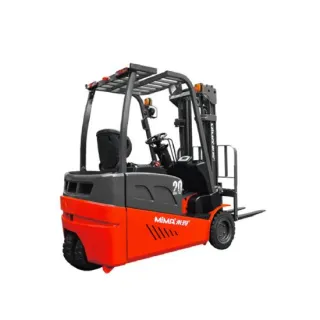

Electric Forklift Trucks Full AC System 3 Wheel 1.6-2.0 Ton Electric Counterbalance Forklift TKC16/20 1 1ff16051ba893e0826ded81e620fe13d_medium

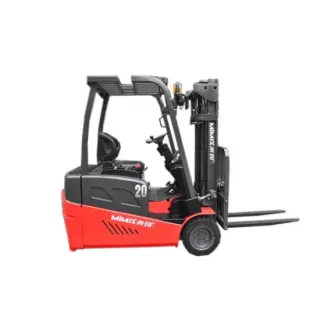

Electric Forklift Trucks Full AC System 3 Wheel 1.6-2.0 Ton Electric Counterbalance Forklift TKC16/20 2 full_ac_system_3_wheel_1_6_2_0_ton_electric_counterbalance_forklift1

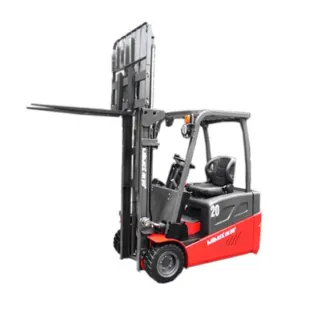

Electric Forklift Trucks Full AC System 3 Wheel 1.6-2.0 Ton Electric Counterbalance Forklift TKC16/20 3 full_ac_system_3_wheel_1_6_2_0_ton_electric_counterbalance_forklift2

Description
Specification

Sama halnya dengan Forklift Electric 4 roda , Electric Counterbalance 3 wheels atau Forklift Electric 3 roda ini bekerja layaknya electric forklift 4 roda. Hanya untuk unit forklift elektrik 3 roda ini memiliki kemampuan manuver yang lebih tinggi karena roda tunggal di bagian belakang.

Forklift Listrik 3 roda ini sangat cocok dipergunakan dimana area manuver yang cukup sempit. Juga cukup diaplikasikan untuk pemakaian indoor maupun outdoor. Kemampuan counterbalance dan kemampuan manuver merupakan kelebihan dari unit ini.

Untuk konsultasi mengenai maintenance misalnya battery forklift maupun charger unit serta konsultasi unit yang tepat untuk anda, Anda dapat menghubungi team spesialis Nami Material Handling Equipment di 0812 9611 1678. Kami akan dengan senang hati membantu anda.

AC BATTERY COUNTERBALANCE FORKLIFT TRUCK M TK15-TK35
Specification
1,1	Brand		MIMA	MIMA	MIMA	MIMA	MIMA
1,2	Model		TK15	TK20	TK25	TK30	TK35
1.5	Power Type		Battery	Battery	Battery	Battery	Battery
1.6	Operation Type		Seated	Seated	Seated	Seated	Seat
1.7	Rated Capacity	Q(kg)	1500	2000	2500	3000	3500
1.8	Load Center	C(mm)	500	500	500	500	500
1.9	Assembly level		2A	2A	2A	3A	3A
Tyre & Rim
2,1	Tyres,front/rear		Pneumatic	Pneumatic	Pneumatic	Pneumatic	Solid/Solid
2,2	Tyre size,front		6.00-9-10PR	21×8-9-16PR	21×8-9-16PR	23×9-10-16PR	23×10-12
2,3	Rim size,front		4.00E-9	6.00E-9	6.00E-9	6.50F-10	7.00T-15
2,4	Tyre size,rear		16×6-8-10PR	18×7-8-14PR	18×7-8-14PR	18×7-8-14PR	18×7-8
2,5	Rim size,rear		4.33R-8	4.33R-8	4.33R-8	4.33R-8	4.33R-8
2,6	Tyres No. front/rear (X=drive)		2X / 2	2X / 2	2X / 2	2X / 2	2X / 2
Dimension
3,1	Tilt of mast forward/backward	α/β(°)	6/10	6/10	6/10	6/10	6/12
3,2	Lift height	h1(mm)	3000	3000	3000	3000	3000
3,3	Free lift height	h2(mm)	135	140	140	140	/
3,4	Height-Mast Lowered	h3(mm)	1995	1995	1995	2100	2080
3,5	Hegith-Mast Extended	h4(mm)	3580	3620	3620	3720	3706
3,6	Height-Mast extended w/ backrest	h5(mm)	4030	4030	4030	4130	4220
3,7	Height of overhead guard	h6(mm)	2100	2100	2100	2130	2130
3.8	Height,seat to overhead guard	h7(mm)	930	930	930	930	930
3,9	Min. Ground clearance,mast	h8(mm)	80	80	80	80	80
3.11	Overall Length	l1(mm)	3130	3390	3425	3620	3770
3.13	Wheelbase	y(mm)	1325	1500	1500	1700	1600
3.14	Front Overhang	x(mm)	370	420	420	418	478
3.15	Overall Width	b1/b2(mm)	1080/1070	1160/1140	1160/1140	1190/1140	1330/1200
3.16	Tread Front/rear	b3/b4(mm)	910/930	950/980	950/980	970/980	1000/992
3.17	Fork Dimensions	l/e/s(mm)	1070×100×35	1070×120×40	1070×120×40	1070×125×40	1070/122/50
3.18	Distance between fork-arms	b5(mm)	220～930	260～1000	260～1000	280～1060	250～1050
3.19	(1000×1200) Aisle width for pallet 1000*1200 crossways	Ast(mm)	3460	3720	3730	3920	4190
3.21	Turning radius	Wa(mm)	1890	2100	2110	2300	2450
Function
4.1	Travel Speed ,laden/unladen	km/h	10/12	10/12	10/12	10/12	10/12
4.2	Lift Speed ,laden/unladen	mm/s	300/	230/	260/	220/	131/283
4.3	Gradeability,laden/unladen	%	10/12	10/12	10/12	10/12	10/12
Power
5.1	(S2 60)Drive Motor	kw	AC6.8	AC6.8	AC6.8	AC9.1	AC11.75
5.2	(S3 15%)Lift motor	kw	DC7.5	DC7.5	DC10	DC10	DC13
5.3	Charger,voltage/current	V/A	48/50	48/70	48/80	48/80	80/60
5.4	Battery voltage/capacity(standard)	V/Ah	48/400	48/490	48/560	48/630	80/400
Weight
6.1	Battery weight (Standard)	kg	645	750	870	960	1230
6.2	Service weight(incl. battery)	kg	2980	3850	4100	4450	5170
Steering、Brake
7.1	Steering type		Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
7.2	Service brake		Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
7.3	Service brake type		Pedal	Pedal	Pedal	Pedal	Foot brake
7.4	Parking brake		Mechanical	Mechanical	Mechanical	Mechanical	Hand brake
Electrica
8.1	Instrument		840	840	840	840	840
8.2	Controller brand		curtis	curtis	curtis	curtis	curtis
8.3	Controller model		1234E	1234E	1236E	1236E	1236E
Other
9.1	噪音 Sound level at the drive's ear	dba	75	75	75	75	75
9.2	系统压力(max)Operating pressure for attachments	bar	160	160	160	160	160
9.3	齿轮泵排量Displacement of gear pump		18	16	23	23	23
9.4	转向器类型Type of steering gear		Full hydraulic steering gear with prior valva type	Full hydraulic steering gear with prior valva type	Full hydraulic steering gear with prior valva type	Full hydraulic steering gear with prior valva type	Full hydraulic steering gear with prior valva type
