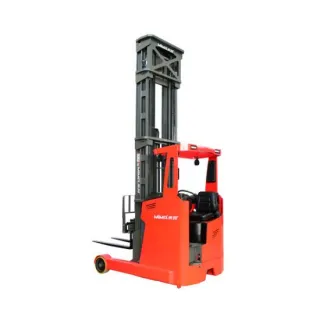

Forklift Reach Trucks Electric Seated Reach Truck MFZ16/20 1 mfz

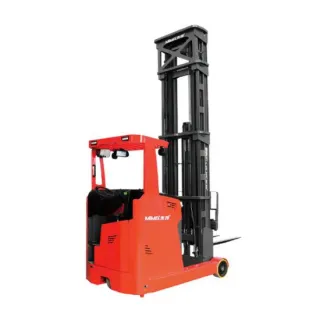

Forklift Reach Trucks Electric Seated Reach Truck MFZ16/20 2 mfz1

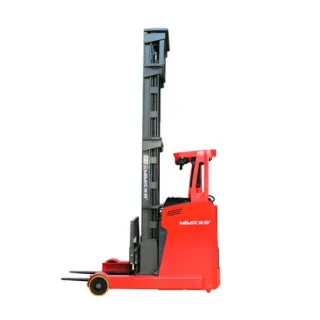

Forklift Reach Trucks Electric Seated Reach Truck MFZ16/20 3 mfz2

Forklift Reach Trucks Electric Seated Reach Truck MFZ16/20 4 mfz3

Description
Specification

Memerlukan unit forklift untuk menaikkan ataupun menurunkan material dari tempat yang tinggi? Electric Reach Truck adalah jawabannya. Dengan menggunakan tenaga battery forklift , unit ini memberikan keunggulan dalam hal menghemat warehouse space dan vertical material handling yang cukup tinggi.

Electric Seating Reach Truck dari Nami Material Handling Unit memiliki variant beban angkat 1 hingga 2 ton sesuai kebutuhan.

Untuk informasi lebih lanjut mengenai pemilihan unit Reach Truck Nami, keunggulan unit Electric Reach Truck Nami maupun maintenance dan after sales service. Dapat langsung menghubungi team terlatih kami di 0812 9607 2178. Team kami di Nami MHE Unit akan dengan senang hati membantu anda dalam hal konsultasi dan menjawab kebutuhan anda untuk segala kebutuhan material handling equipment

Seated type 2t reach forklift
Standard
1.1	Brand		MIMA	MIMA
1.2	Model		TFZ16-30	TFZ20-30
1.3	Power Type		Battery	Battery
1.4	Operation Type		Seated	Seated
1.5	Rated Capacity	Q(kg)	1600	2000
1.6	Load Center	C(mm)	600	600
Tire、 Rim
2.1	Tyres,front/rear		Solid PU	Solid PU
2.2	Tyre size,front	mm	φ280×135	φ300×120
2.3	Tyre size,drive wheel	mm	φ343×108	φ343×120
2.4	Tyre size,balance wheel	mm	/	/
2.5	Tyres No. front/rear (X=drive)		2 / 1X	2 / 1X
Dimension
3.1	Tilt of fork forward/backward	α/β(°)	03-Mei	03-Mei
3.2	Lift height	h1(mm)	3000	3000
3.3	Free lift height	h2(mm)	/	/
3.4	Height-Mast Lowered	h3(mm)	2075	2175
3.5	Height-Mast extended w/ backrest	h4(mm)	4642	4742
3.6	Height-Overhead guard	h5(mm)	2206	2236
3.7	Height of legs	h6(mm)	238	275
3.8	Height of first pedal	h7(mm)	346	376
3.9	Height of second pedal	h8(mm)	613	643
3.10	Height of Seat	h9(mm)	1033	1063
3.11	Height-From second pedal to overhead guard	h10(mm)	1513	1513
3.12	Ground clearance of leg	m1(mm)	70	100
3.13	Ground clearance of bottom	m2(mm)	50	80
3.14	Min. ground clearance of mast	m3(mm)	75	75
3.15	Overall Length (incl. fork)	L1(mm)	2340	2427
3.16	Overall Length (without fork)	L2(mm)	1825	1934
3.17	Reach Stroke	L3(mm)	610	617
3.18	Front Overhang	x(mm)	215	200
3.19	Wheelbase	y(mm)	1426	1525
3.20	Overall Width	b1/b2(mm)	1270	1270/1290
3.21	Tread front/rear	b3/b4(mm)	1134/0	1170/0
3.22	Inner distance between legs	b5(mm)	894	890
3.23	Distance between fork-arms	b6(mm)	200-680	200-680
3.24	Fork Dimensions	L/e/s(mm)	1070×100×35	1070×100×45
3.25	Aisle width for pallet 1200*800 crossways	Ast1(mm)	2743	2843
3.26	Aisle with for pallet 1000*1200 crossways	Ast2(mm)	2696	2800
3.27	Turning radius	Wa(mm)	1665	1765
Function
4.1	Travel Speed ,laden/unladen	km/h	8.5/10	8.5/10
4.2	Lift Speed ,laden/unladen	mm/s	210/340	210/340
4.3	Lowering speed,laden/unladen	mm/s	300/300	300/300
4.4	Max. Gradeability,laden/unladen	%	≤10	≤10
Power
5.1	Type of Drive Motor		AC	AC
5.2	Drive Motor	kw	5.5	5.5
5.3	Type of Lift motor		AC	AC
5.4	Lift motor	kw	8.6	8.6
5.5	Battery voltage/capacity	V/Ah	48/420	48/560
Weight
6.1	Battery weight	kg	760	920
6.2	Service weight(incl. battery)	kg	3018	3258
Steering、Braking
7.1	Steering type		hydraulic	hydraulic
7.2	Parking Brake type		Drum Brake	Drum Brake
7.3	Parking Operation type		Pedal Brake	Pedal Brake
7.4	Service Brake type		Hand Brake	Hand Brake
