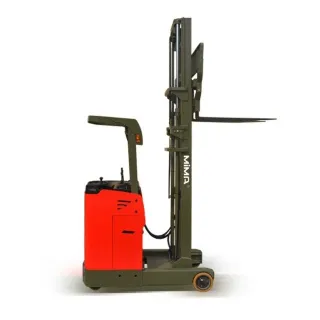

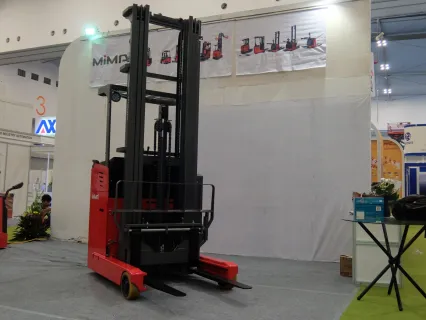

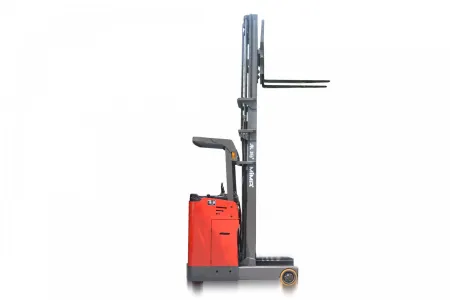

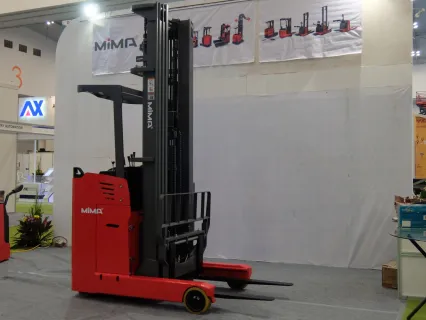

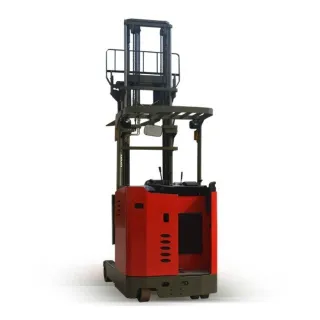

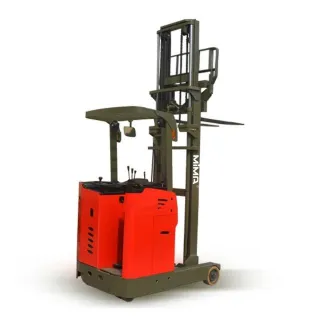

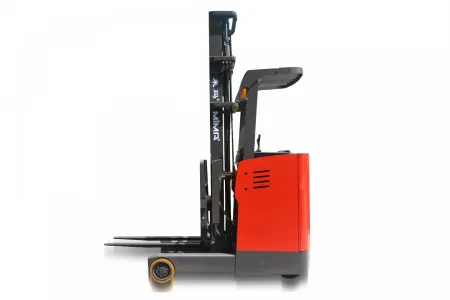

Electric Stand On Reach Truck MF10/12/15/20/30
- Description
- Specification
Memerlukan unit forklift untuk menaikkan ataupun menurunkan material dari tempat yang tinggi? Electric Reach Truck adalah jawabannya. Dengan menggunakan tenaga battery forklift , unit ini memberikan keunggulan dalam hal menghemat warehouse space dan vertical material handling yang cukup tinggi.
Electric Standing Reach Truck dari Nami Material Handling Unit memiliki variant beban angkat 1 hingga 3 ton sesuai kebutuhan.
Untuk informasi lebih lanjut mengenai pemilihan unit Reach Truck Nami, keunggulan unit Electric Reach Truck Nami maupun maintenance dan after sales service. Dapat langsung menghubungi team terlatih kami di 0812 9607 2178. Team kami di Nami MHE Unit akan dengan senang hati membantu anda dalam hal konsultasi dan menjawab kebutuhan anda untuk segala kebutuhan material handling equipment
| AC ELECTRIC REACH TRUCK TF20 |
|||
| Standard | |||
| 1,1 | Brand | MIMA | |
| 1,2 | Model | TF20-50 | |
| 1,3 | Power type | Battery | |
| 1,4 | Operation type | Stand-on | |
| 1,5 | Loading capacity | Q(kg) | 2000 |
| 1,6 | Loading center | C(mm) | 500 |
| Tire、 Rim | |||
| 2,1 | Tire type front/rear | Solid PU/Solid PU | |
| 2,2 | Front wheel(diameter*width) | mm | φ267×135 |
| 2,3 | Driving wheel(D*W) | mm | φ380×165 |
| 2,4 | Balance wheel(D*W) | mm | φ204×76 |
| 2,5 | Tire quantity front/driving/rear(X=driving) | 2 / 1X / 2 | |
| Dimension | |||
| 3,1 | Tilting angle(forward-backward) | α/β(°) | 3/5 |
| 3,2 | Lifting height | h1(mm) | 5000 |
| 3,3 | Free lifting height | h2(mm) | 1692 |
| 3,4 | Mast height(closed) | h3(mm) | 2292 |
| 3,5 | Mast height(open) | h4(mm) | 5960 |
| 3,6 | Overhead guard height | h5(mm) | 2250 |
| 3,7 | Distance from pedal to overhead guard | h6(mm) | 1950 |
| 3,8 | Min under-clearance | h7(mm) | 82 |
| 3,9 | Overall length | l1(mm) | 2310 |
| 3.10 | Mast forwarding length | l2(mm) | 775 |
| 3.11 | Wheelbase | y(mm) | 1345 |
| 3.12 | Forward overhang | x(mm) | 180 |
| 3.13 | Overall width | b1/b2(mm) | 1170 |
| 3.14 | Wheeltrack front/rear | b3/b4(mm) | 978/680 |
| 3.15 | Fork size | l/e/s(mm) | 1070×100×35 |
| 3.16 | Fork spread | b5(mm) | 230～760 |
| 3.17 | Aisle(1000×1200 pallet) | Ast(mm) | 2753 |
| 3.18 | Aisle(800×1200 pallet) | Ast(mm) | 2773 |
| 3.19 | Turning radius | Wa(mm) | 1784 |
| Distance between the legs | mm | 856 | |
| Function | |||
| 4.1 | Driving speed load/unload | km/h | 9/10 |
| 4.2 | Lifting speed load/unload | mm/s | 240/400 |
| 4.3 | Lowering speed load/unload | mm/s | 350 |
| 4.4 | Grade ability(S2 5)load/unload | % | ≤10 |
| Power | |||
| 5.1 | Driving motor type | AC | |
| 5.2 | Driving motor power(S2 60) | kw | 4.5 |
| 5.3 | Lifting motor type | AC | |
| 5.4 | Lifitng motor power(S3 15%) | kw | 7,5 |
| 5.5 | Battery V/AH | V/Ah | 48/300 |
| Weight | |||
| 6.1 | Battery weight | kg | 505 |
| 6.2 | Total weight(inclue battery) | kg | 2950 |
| 6.3 | Axle-load (load) front/rear | kg | / |
| 6.4 | Axle-load(unload) front/rear | kg | / |
| Steering、Braking | |||
| 7.1 | Steering type | EPS | |
| 7.2 | Service brake type | Mechanical type | |
| 7.3 | Service brake | Foot step type | |
| 7.4 | Parking brake type | Foot step type | |
| Other | |||
| 8.1 | Battery placement mode | Side pull type | |
| 8.2 | |||
| AC ELECTRIC REACH TRUCK TF15 |
|||
| Standard | |||
| 1,1 | Brand | MIMA | |
| 1,2 | Model | TF15 | |
| 1,3 | Power type | Battery | |
| 1,4 | Operation type | Stand-on | |
| 1,5 | Loading capacity | Q(kg) | 1500 |
| 1,6 | Loading center | C(mm) | 500 |
| Tire、 Rim | |||
| 2,1 | Tire type front/rear | Solid PU/Solid PU | |
| 2,2 | Front wheel(diameter*width) | mm | φ254×104 |
| 2,3 | Driving wheel(D*W) | mm | φ343×108 |
| 2,4 | Balance wheel(D*W) | mm | φ180×76 |
| 2,5 | Tire quantity front/driving/rear(X=driving) | 2 / 1X / 2 | |
| Dimension | |||
| 3,1 | Tilting angle(forward-backward) | α/β(°) | 3/5 |
| 3,2 | Lifting height | h1(mm) | 3000 |
| 3,3 | Free lifting height | h2(mm) | 400 |
| 3,4 | Mast height(closed) | h3(mm) | 2082 |
| 3,5 | Mast height(open) | h4(mm) | 3960 |
| 3,6 | Overhead guard height | h5(mm) | 2250 |
| 3,7 | Distance from pedal to overhead guard | h6(mm) | 1950 |
| 3,8 | Min under-clearance | h7(mm) | 82 |
| 3,9 | Overall length | l1(mm) | 2239 |
| 3.10 | Mast forwarding length | l2(mm) | 570 |
| 3.11 | Wheelbase | y(mm) | 1345 |
| 3.12 | Forward overhang | x(mm) | 180 |
| 3.13 | Overall width | b1/b2(mm) | 1090 |
| 3.14 | Wheeltrack front/rear | b3/b4(mm) | 978/680 |
| 3.15 | Fork size | l/e/s(mm) | 1070×100×35 |
| 3.16 | Fork spread | b5(mm) | 220～662 |
| 3.17 | Aisle(1000×1200 pallet) | Ast(mm) | 2650 |
| 3.18 | Aisle(800×1200 pallet) | Ast(mm) | 2698 |
| 3.19 | Turning radius | Wa(mm) | 1594 |
| Distance between the legs | mm | 750 | |
| ★: h1≥4.5M triplex free lifting mast | |||
| 3.9 | ★Overall length | l1(mm) | 2264 |
| 3.10 | ★Mast forwarding length | l2(mm) | 545 |
| 3.12 | ★Forward overhang | x(mm) | 190 |
| 3.13 | ★Overall width | b1/b2(mm) | 1170 |
| 3.14 | ★Wheeltrack front/rear | b3/b4(mm) | 1138/726 |
| 3.16 | ★Fork spread | b5(mm) | 220～762 |
| 3.17 | ★Aisle (1000×1200 pallet) | Ast(mm) | 2668 |
| 3.18 | ★Aisle (800×1200 pallet) | Ast(mm) | 2720 |
| ★Distance between the legs | mm | 856 | |
| Function | |||
| 4.1 | Driving speed load/unload | km/h | 9/10 |
| 4.2 | Lifting speed load/unload | mm/s | 240/400 |
| 4.3 | Lowering speed load/unload | mm/s | 350 |
| 4.4 | Grade ability(S2 5)load/unload | % | ≤10 |
| Power | |||
| 5.1 | Driving motor type | AC | |
| 5.2 | Driving motor power(S2 60) | kw | 4.5 |
| 5.3 | Lifting motor type | DC | |
| 5.4 | Lifitng motor power(S3 15%) | kw | 7,3 |
| 5.5 | Battery V/AH | V/Ah | 48/300 |
| Weight | |||
| 6.1 | Battery weight | kg | 505 |
| 6.2 | Total weight(inclue battery) | kg | 2450 |
| 6.3 | Axle-load (load) front/rear | kg | / |
| 6.4 | Axle-load(unload) front/rear | kg | / |
| Steering、Braking | |||
| 7.1 | Steering type | EPS | |
| 7.2 | Service brake type | Mechanical type | |
| 7.3 | Service brake | Foot step type | |
| 7.4 | Parking brake type | Foot step type | |
| Other | |||
| 8.1 | Battery placement mode | Side pull type | |
| 8.2 | |||
